2SD1314 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD1314

Manufacturer:

Inchange Semiconductor

File Size:

187.15kb

Download:

📄 Datasheet

Description:

Silicon npn transistor.

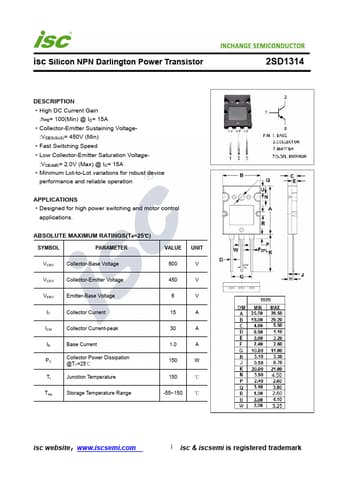

  • High DC Current Gain :hFE= 100(Min) @ IC= 15A
  • Collector-Emitter Sustaining Voltage- :VCEO(SUS)= 450V (Min)
  • Datasheet Preview: 2SD1314 📥 Download PDF (187.15kb)
    Page 2 of 2SD1314

    2SD1314 Application

    • Applications
    • Designed for high power switching and motor control applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VCBO

    TAGS

    2SD1314
    Silicon
    NPN
    Transistor
    Inchange Semiconductor
