BCR103U Datasheet - Infineon Technologies AG

BCR103U NPN Silicon Digital Transistor

BCR103 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=2.2kΩ, R2=2.2kΩ) For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package BCR103/F BCR103L3/T C 3 BCR103U C1 6 B2 5 E2 4 R1 R1 R2 TR2 R1 R2 TR1 R2 1 B 2 E EHA07184 1 E1 2 B1 3 C2 EHA07174 Type BCR103 BCR103F BCR103L3 BCR103T BCR103U Marking WAs WAs WA WAs WAs 1=B 1=B 1=B 1=B 2=E 2=E 2.

BCR103U Datasheet (198.02 KB)

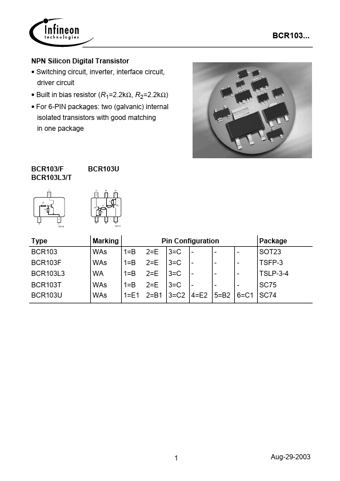

Preview of BCR103U PDF
BCR103U Datasheet Preview Page 2 BCR103U Datasheet Preview Page 3

Datasheet Details

Part number:

BCR103U

Manufacturer:

Infineon ↗ Technologies AG

File Size:

198.02 KB

Description:

Npn silicon digital transistor.
