BGA855N6 - Low Noise Amplifier

Infineon

BGA855N6 Datasheet Preview — Preview of BGA855N6 PDF

Datasheet Details

Part number	BGA855N6
Manufacturer	Infineon ↗
File Size	535.46 KB
Description	Low Noise Amplifier
Datasheet	BGA855N6-Infineon.pdf

BGA855N6 Product details

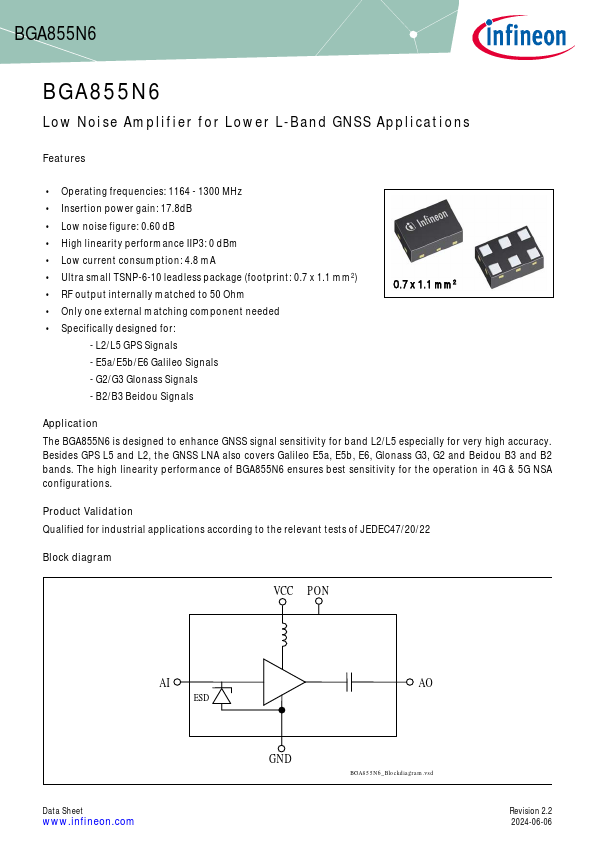

Description

The BGA855N6 is a front-end low noise amplifier for GPS L5 and L2, Galileo E5a, E5b, E6, Glonass G3, G2 and Beidou B3 and B2 bands for a frequency range from 1164 MHz to 1300 MHz.

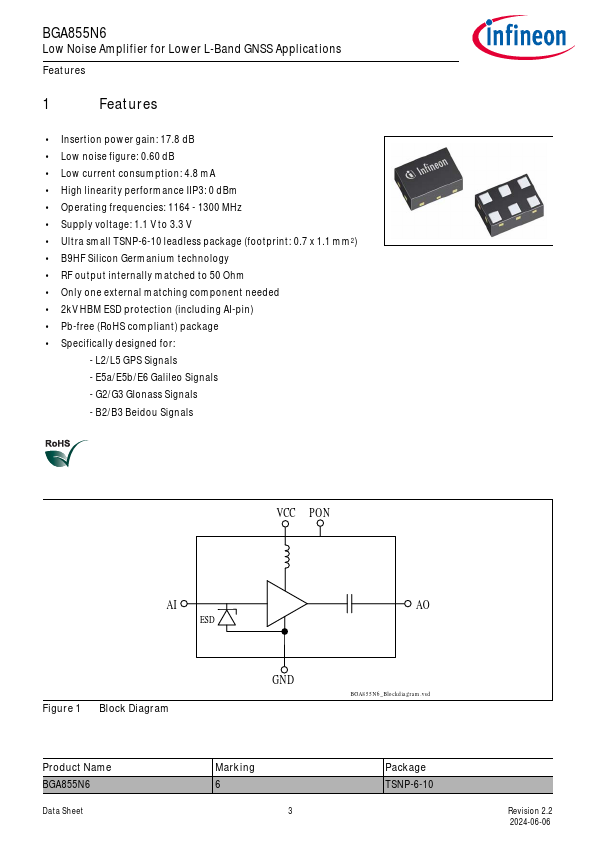

Features

Operating frequencies: 1164 - 1300 MHz.
Insertion power gain: 17.8dB.
Low noise figure: 0.60 dB.
High linearity performance IIP3: 0 dBm.
Low current consumption: 4.8 mA.
Ultra small TSNP-6-10 leadless package (footprint: 0.7 x 1.1 mm2).
RF output internally matched to 50 Ohm.
Only one external matching component needed.
Specifically designed for: - L2/L5 GPS Signals - E5a/E5b/E6 Galileo Signals - G2/G3 Glonass Sig.
