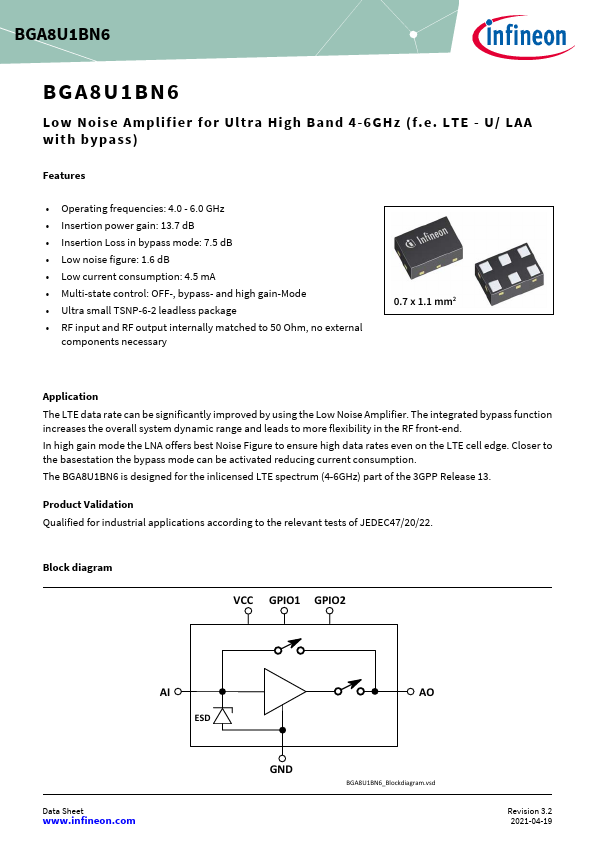

BGA8U1BN6 Datasheet Preview — Preview of BGA8U1BN6 PDF

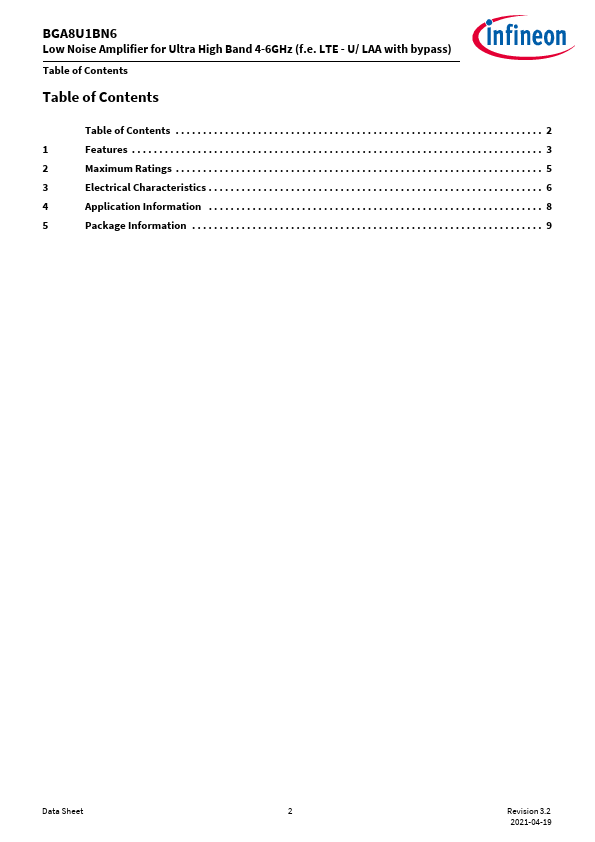

datasheet Preview Page 2

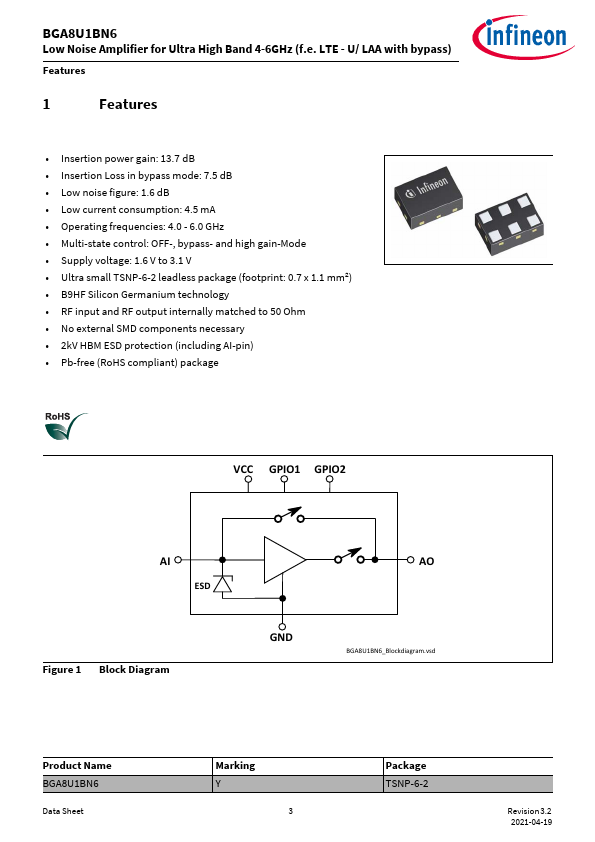

datasheet Preview Page 3

Datasheet Details

Part number	BGA8U1BN6
Manufacturer	Infineon ↗
File Size	484.71 KB
Description	Low Noise Amplifier
Datasheet	BGA8U1BN6-Infineon.pdf

BGA8U1BN6 Product details

Description

The BGA8U1BN6 is a front-end low noise amplifier for LTE which covers a wide frequency range from 4.0 GHz to 6.0 GHz.

Features

Operating frequencies: 4.0 - 6.0 GHz.
Insertion power gain: 13.7 dB.
Insertion Loss in bypass mode: 7.5 dB.
Low noise figure: 1.6 dB.
Low current consumption: 4.5 mA.
Multi-state control: OFF-, bypass- and high gain-Mode.
Ultra small TSNP-6-2 leadless package.
RF input and RF output internally matched to 50 Ohm, no external components necessary 0.7 x 1.1 mm2.
