BGA925L6 Datasheet - Infineon

BGA925L6 Silicon Germanium GNSS Low Noise Amplifier

The BGA925L6 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1550 MHz to 1615 MHz like GPS, Galileo, GLONASS and COMPASS and others. The LNA provides 15.8 dB gain and 0.65 dB noise figure at a current consumption of 4.8 mA in the application configuration descr.

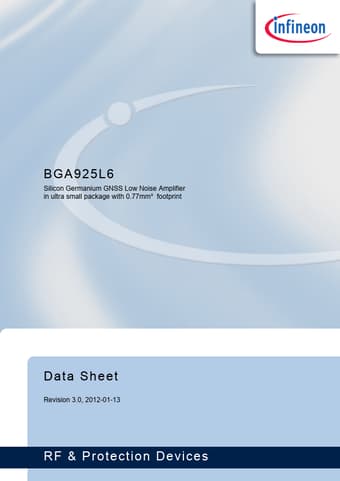

BGA925L6 Silicon Germanium GNSS Low Noise Amplifier in ultra small package with 0.77mm² footprint Data Sheet Revision 3.0, 2012-01-13 RF & Protection Devices Edition 2012-01-13 Published by Infineon Technologies AG 81726 Munich, Germany © 2012 Infineon Technologies AG All Rights Reserved. Legal Disclaimer The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hints given herein, any typical values sta.

BGA925L6-Infineon.pdf

Preview of BGA925L6 PDF
BGA925L6 Datasheet Preview Page 2 BGA925L6 Datasheet Preview Page 3

Datasheet Details

Part number:

BGA925L6

Manufacturer:

Infineon ↗

File Size:

1.36 MB

Description:

Silicon germanium gnss low noise amplifier.
