BGA9H1BN6 - Highband High Performance LNA

Infineon

📥 Download Datasheet

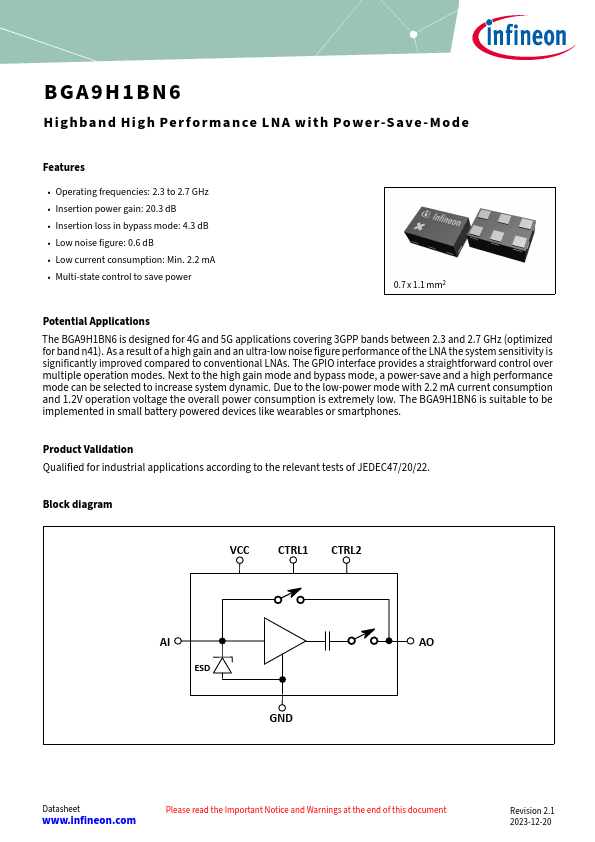

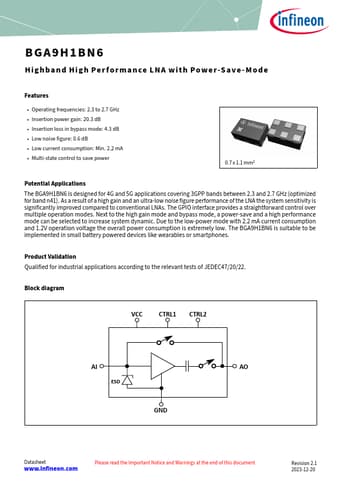

BGA9H1BN6 Datasheet Preview — Preview of BGA9H1BN6 PDF

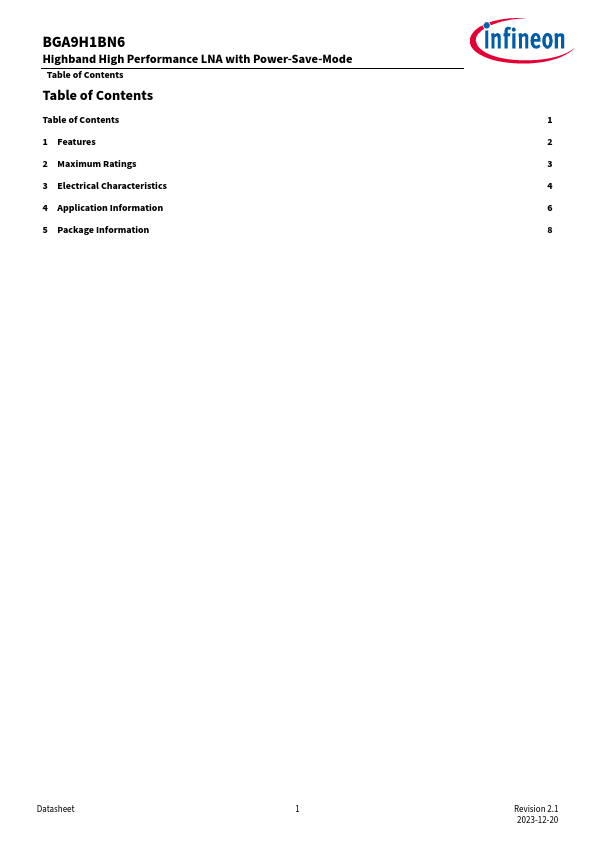

datasheet Preview Page 2

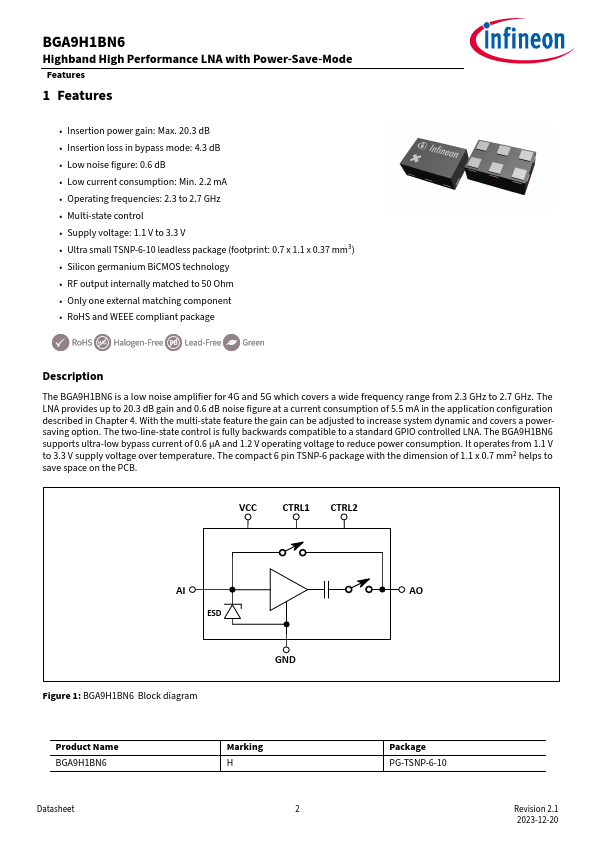

datasheet Preview Page 3

Datasheet Details

Part number: BGA9H1BN6
Manufacturer: Infineon ↗
File Size: 671.47 KB
Datasheet: BGA9H1BN6-Infineon.pdf
Description: Highband High Performance LNA

BGA9H1BN6 Product details

Description

The BGA9H1BN6 is a low noise amplifier for 4G and 5G which covers a wide frequency range from 2.3 GHz to 2.7 GHz.

Features

Operating frequencies: 2.3 to 2.7 GHz.
Insertion power gain: 20.3 dB.
Insertion loss in bypass mode: 4.3 dB.
Low noise figure: 0.6 dB.
Low current consumption: Min. 2.2 mA.
Multi-state control to save power 0.7 x 1.1 mm2 Potential.
