IDW10G120C5B - Silicon Carbide Schottky Diode

Infineon

📥 Download Datasheet

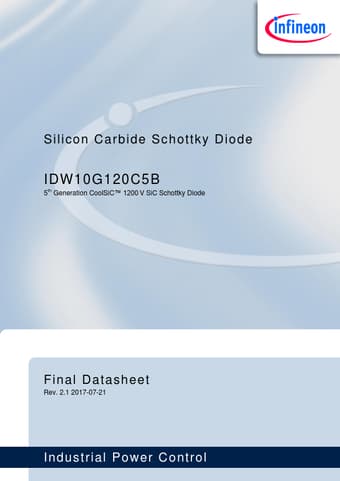

IDW10G120C5B Datasheet Preview — Preview of IDW10G120C5B PDF

Datasheet Details

Part number: IDW10G120C5B
Manufacturer: Infineon ↗
File Size: 835.31 KB
Datasheet: IDW10G120C5B-Infineon.pdf
Description: Silicon Carbide Schottky Diode

IDW10G120C5B Product details

Description

2 Table of Contents3 Maximum Ratings 4 Thermal Resistances 4 Electrical Characteristics5 Electrical Characteristics Diagram 5 Package Drawings 9 Revision History 10 Disclaimer 11 Final Data Sheet 3 Rev.2.1, 2017-07-21 IDW10G120C5B 5th Generation CoolSiC™ 1200 V SiC Schottky Diode Maximum ratings Parameter Repetitive peak reverse voltage Continuous forward current for Rth(j-c,max) TC = 156°C, D=1 TC = 135°C, D=1 TC = 25°C, D=1 Surge non-repetitive forward current, sine halfwave TC=25°C, tp=.

Features

Revolutionary semiconductor material - Silicon Carbide.
No reverse recovery current / No forward recovery.
Temperature independent switching behavior.
Low forward voltage even at high operating temperature.
Tight forward voltage distribution.
Excellent thermal performance.
Extended surge current capability.
Specified dv/dt ruggedness.
Qualified according to JEDEC1) for target.
