IGC130T75E12D2CKA - EDT2 IGBT

Datasheet Summary

Description

Recommended for power modules Product Validation

Technology qualified for automotive applications.

Ready for validation for automotive applications according to AEC Q100/101 or AQG324.

Features

750V trench + field stop technology.
Low VCE(sat).
Low switching losses.
Short tail current.
Positive temperature coefficient.
Integrated current mirror (current sensor).
Integrated temperature sensor.
Solderable / sinterable front side pads1 C G TSA E CS.

Infineon

📥 Download Datasheet

Datasheet Details

Part number	IGC130T75E12D2CKA
Manufacturer	Infineon
File Size	356.16 KB
Description	EDT2 IGBT
Datasheet	IGC130T75E12D2CKA Datasheet

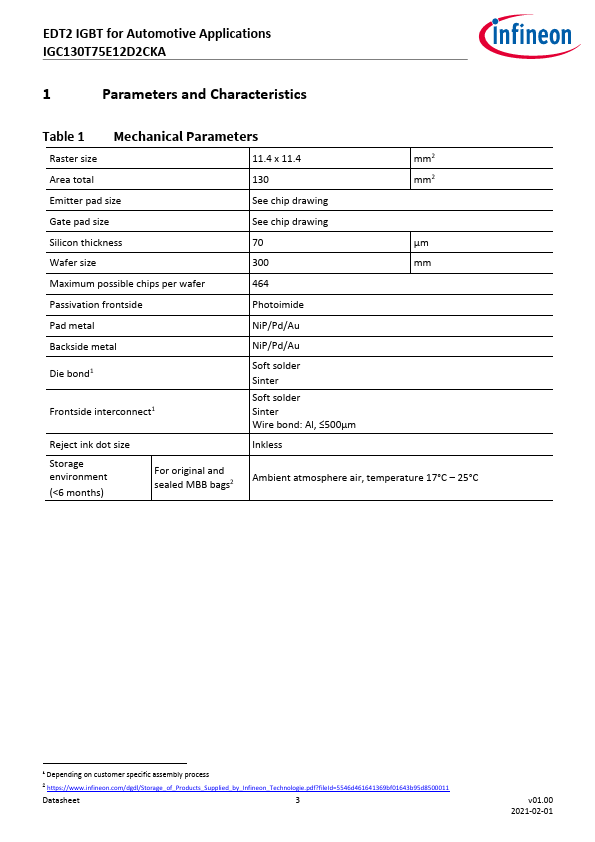

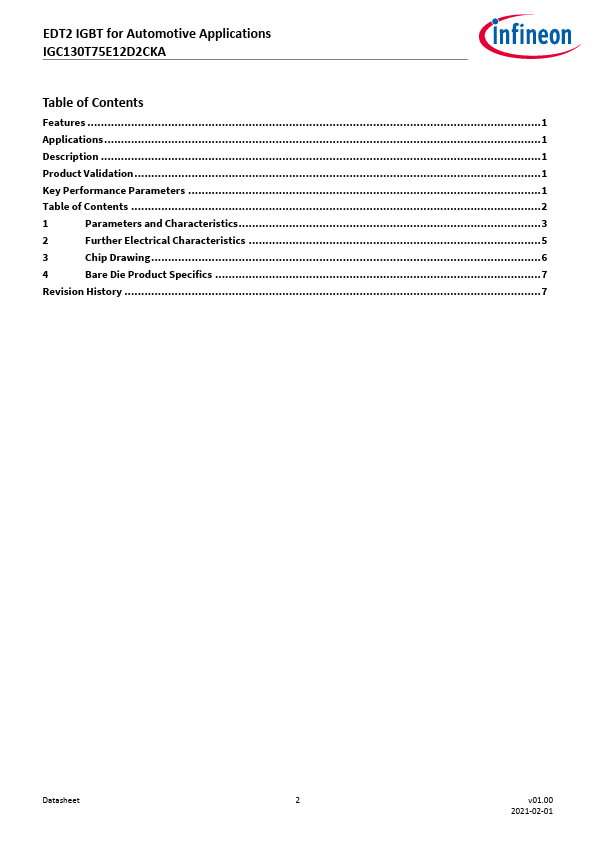

Additional preview pages of the IGC130T75E12D2CKA datasheet.

📁 Similar Datasheet

Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

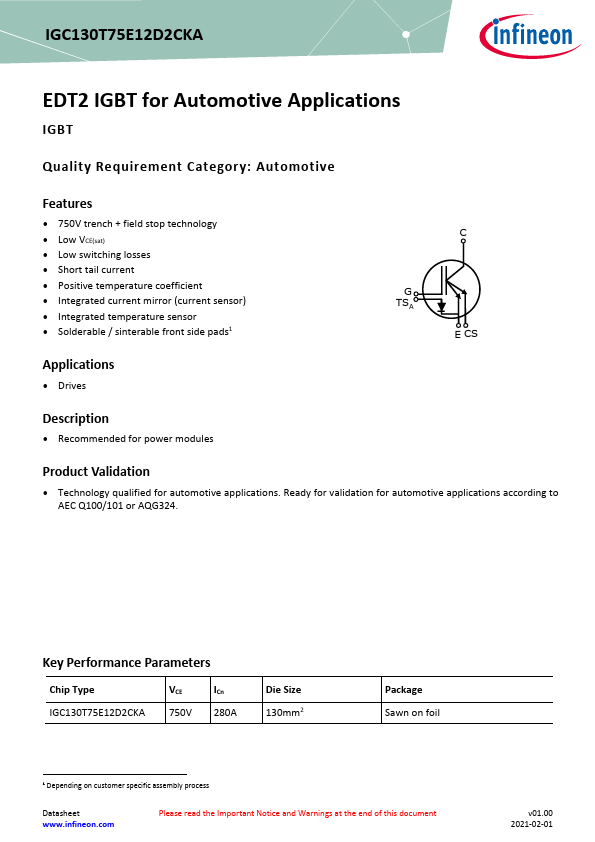

IGC130T75E12D2CKA EDT2 IGBT for Automotive Applications IGBT Quality Requirement Category: Automotive Features • 750V trench + field stop technology • Low VCE(sat) • Low switching losses • Short tail current • Positive temperature coefficient • Integrated current mirror (current sensor) • Integrated temperature sensor • Solderable / sinterable front side pads1 C G TSA E CS Applications • Drives Description • Recommended for power modules Product Validation • Technology qualified for automotive applications. Ready for validation for automotive applications according to AEC Q100/101 or AQG324. Key Performance Parameters Chip Type IGC130T75E12D2CKA VCE 750V ICn 280A Die Size 130mm2 Package Sawn on foil 1 Depending on customer specific assembly process Datasheet www.infineon.
