IMZA120R017M2H Datasheet - Infineon

1200V SiC MOSFET

IMZA120R017M2H Features

* VDSS = 1200 V at Tvj = 25°C

* IDDC = 69 A at TC = 100°C

* RDS(on) = 17 mΩ at VGS = 18 V, Tvj = 25°C

* Very low switching losses

* Overload operation up to Tvj = 200°C

* Short circuit withstand time 2 µs

* Benchmark gate threshold voltage, VGS

IMZA120R017M2H General Description

1 * drain 2 * source 3 * Kelvin sense contact 4 * gate Note: the source and sense pins are not exchangeable, their exchange might lead to malfunction Copyright © Infineon Techn Type IMZA120R017M2H Package PG-TO247-4-U02 Marking 12M2H017 Datasheet www.infineon.com.

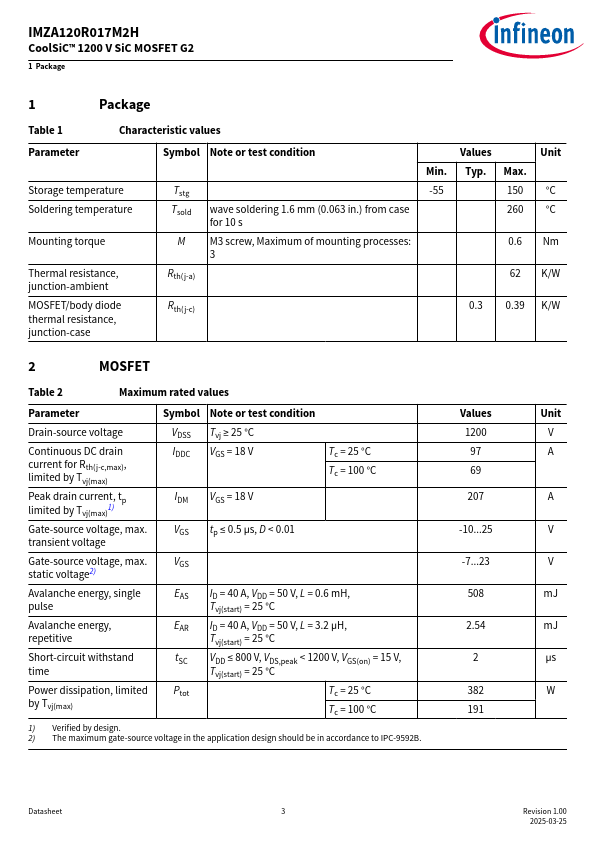

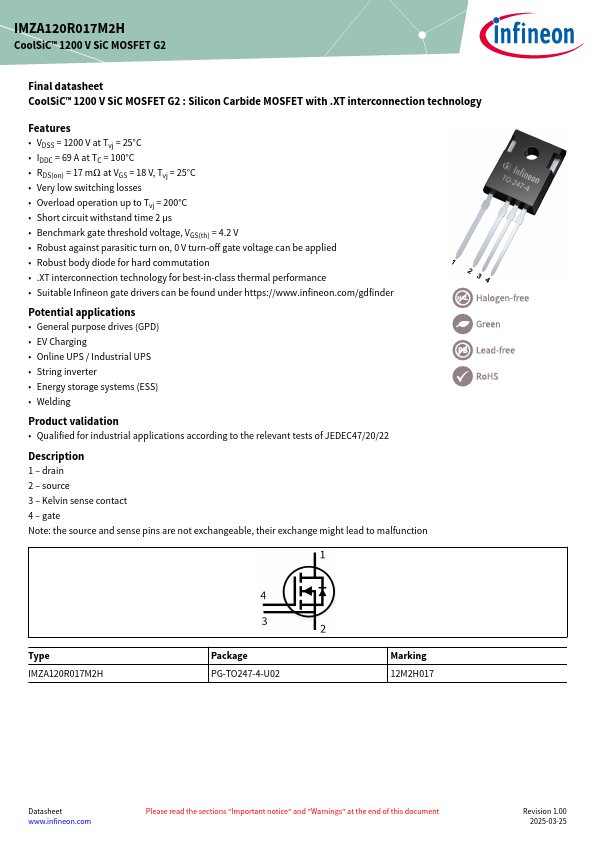

IMZA120R017M2H Datasheet (1.47 MB)
