IPB022N12NM6 Datasheet - Infineon

IPB022N12NM6, MOSFET

IPB022N12NM6 MOSFET OptiMOSTM 6 Power-Transistor, 120 V .

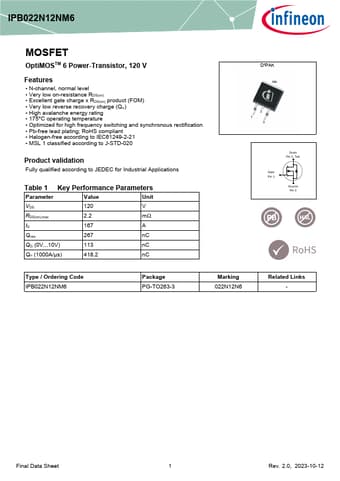

datasheet Preview Page 1 from Datasheet4u.com

IPB022N12NM6-Infineon.pdf

IPB022N12NM6 Datasheet Preview — Preview of IPB022N12NM6 PDF

Datasheet Details

Part number:

IPB022N12NM6

Manufacturer:

Infineon ↗

File Size:

1.12 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Excellent gate charge x RDS(on) product (FOM)
* Very low reverse recovery charge (Qrr)
* High avalanche energy rating
* 175°C operating temperature
* Optimized for high frequency swit

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 120 V RDS(on),max 2.2 mΩ ID 167 A Qoss 267 nC QG (0V10V) 113 nC Qrr (1000A/µs) 418.2 nC D²PAK tab 2 1 3 Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Type / Ordering Code IPB022N12NM6 Package PG-TO263-3 Marking
