IPD090N03L, IPD090N03LG Datasheet - Infineon

IPD090N03L, IPD090N03LG, MOSFET

IPD090N03L G E8177 MOSFET OptiMOSª 3 Power-Transistor, 30 V .

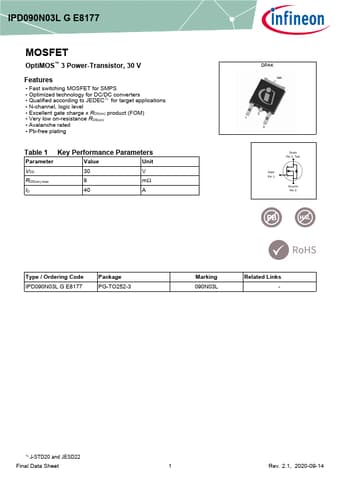

datasheet Preview Page 1 from Datasheet4u.com

IPD090N03LG-Infineon.pdf

IPD090N03L Datasheet Preview — This datasheet PDF includes multiple part numbers: IPD090N03L, IPD090N03LG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPD090N03L, IPD090N03LG

Manufacturer:

Infineon ↗

File Size:

0.98 MB

Description:

MOSFET

Note:

This datasheet PDF includes multiple part numbers: IPD090N03L, IPD090N03LG.
Please refer to the document for exact specifications by model.

Features

* Fast switching MOSFET for SMPS
* Optimized technology for DC/DC converters

Applications

* N-channel, logic level
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* Avalanche rated
* Pb-free plating Table 1 Key Performance Parameters Parameter Value Unit VDS 30 V RDS(on),max 9 mΩ ID 40 A DPAK tab
