IRFP4468, IRFP4468PbF, 100V Power MOSFET

Public IRFP4468PbF Final datasheet MOSFET StrongIRFET™ Power MOSFET, 100 V .
1 Maxi.

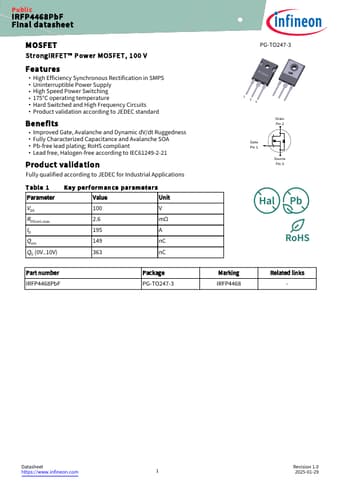

datasheet Preview Page 1 from Datasheet4u.com

IRFP4468PbF-Infineon.pdf

IRFP4468 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFP4468, IRFP4468PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFP4468, IRFP4468PbF

Manufacturer:

Infineon ↗

File Size:

0.96 MB

Description:

100V Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFP4468, IRFP4468PbF.
Please refer to the document for exact specifications by model.

Features

* High Efficiency Synchronous Rectification in SMPS
* Uninterruptible Power Supply
* High Speed Power Switching
* 175°C operating temperature
* Hard Switched and High Frequency Circuits
* Product validation according to JEDEC standard Benefits

Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG (0V. .10V) Key performance parameters Value Unit 100 V 2.6 mΩ 195 A 149 nC 363 nC Part number IRFP4468PbF Package PG‑TO247‑3 PG‑TO247‑3 1 2 3 Gate Pin 1 Drain Pin 2 Source Pin 3 Marking IRFP4468 Related links ‑ Datasheet https://www.
