S78HL512TC0, S78HS512TC0 Datasheet - Infineon

S78HL512TC0 512Mb Flash and 64Mb HYPERRAM

1.1 Octal MCP family with SEMPER™ Flash and HYPERRAM™3 2 Octal MCP signal description4 3 Octal MCP block diagram6 4 Physical interface 7 4.1 Octal MCP * FBGA 24-ball, 5 × 5 footprint7 5 Electrical specifications8 5.1 Absolute maximum ratings 8 5.2 DC characteristics 8 5.3 Capacitance charac.

S78HL512TC0 Features

* SEMPER™ Flash and HYPERRAM™2.0 with Octal interface in multi-chip package (MCP) - 1.8 V, 512Mb SEMPER™ Flash and 64Mb HYPERRAM™ 2.0 (S78HS512TC0) - 3.0 V, 512Mb SEMPER™ Flash and 64Mb HYPERRAM™ 2.0 (S78HL512TC0) - FBGA 24-ball, 8 × 8 × 1.2 mm packages

* Octal interface - 1.8V I/O

S78HS512TC0-Infineon.pdf

This datasheet PDF includes multiple part numbers: S78HL512TC0, S78HS512TC0. Please refer to the document for exact specifications by model.

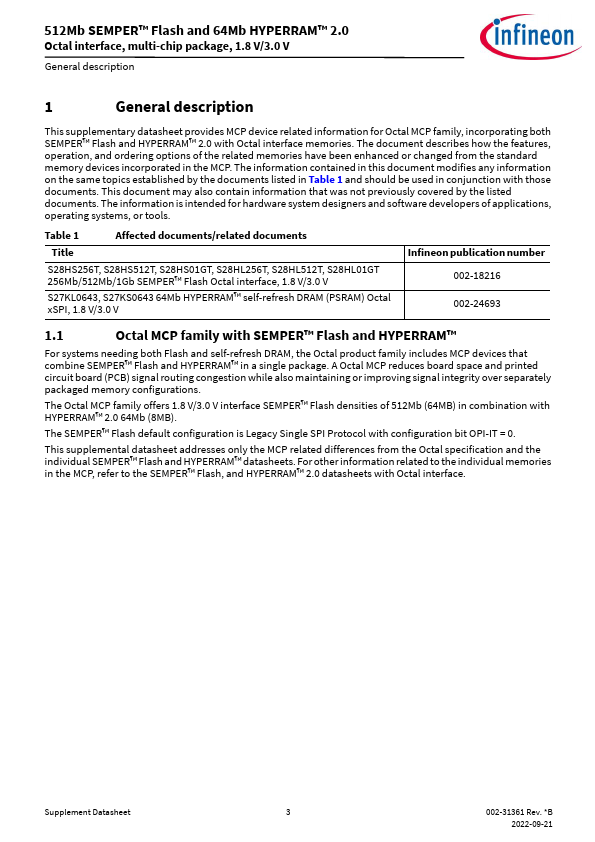

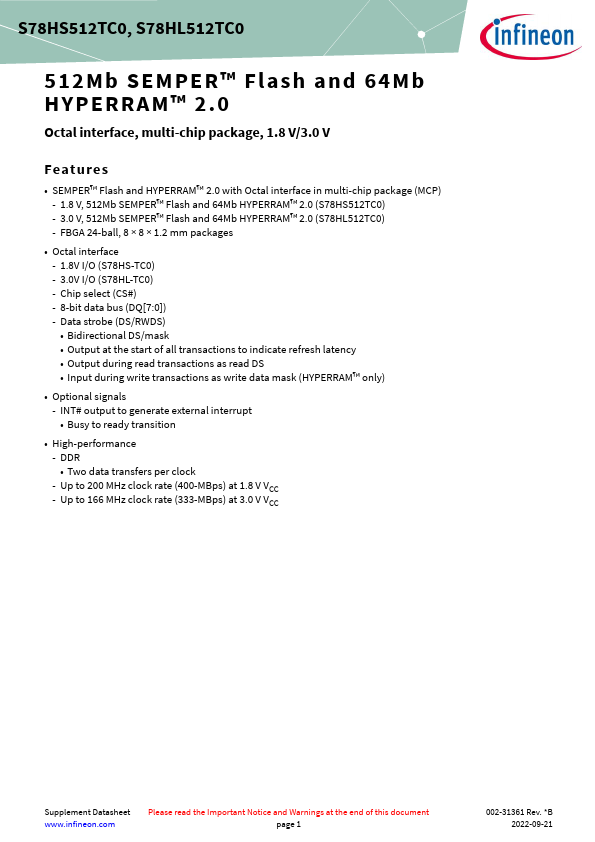

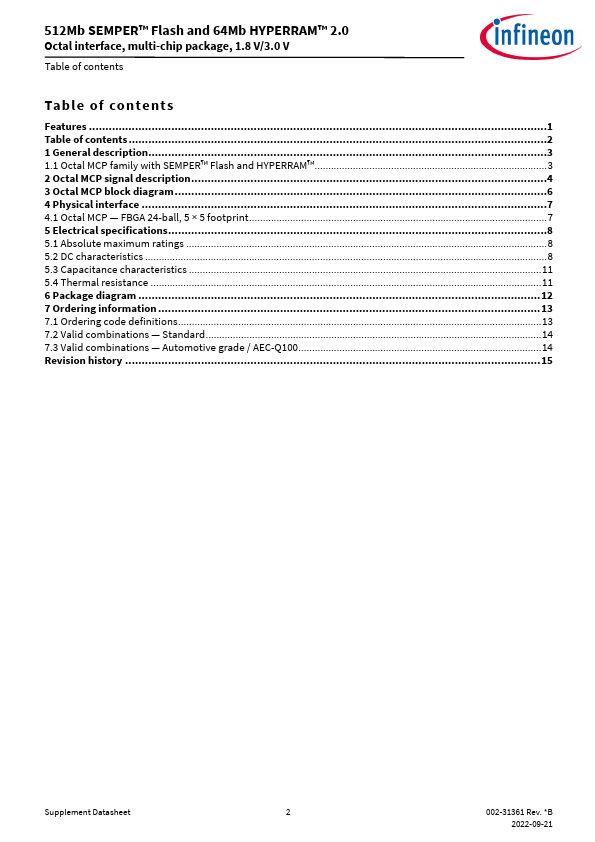

S78HL512TC0 Datasheet Preview Page 2 S78HL512TC0 Datasheet Preview Page 3

Datasheet Details

Part number:

S78HL512TC0, S78HS512TC0

Manufacturer:

Infineon ↗

File Size:

209.05 KB

Description:

512mb flash and 64mb hyperram.

Note:

This datasheet PDF includes multiple part numbers: S78HL512TC0, S78HS512TC0.
Please refer to the document for exact specifications by model.
