ITBH09200B2

High Power RF LDMOS FET

ITBH09200B2 Features

* High Efficiency and Linear Gain Operations

* Integrated ESD Protection

* Internally Matched for Ease of Use

* Excellent thermal stability, low HCI drift

* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation

* Compliant to Restriction of Haz

ITBH09200B2 General Description

The ITBH09200B is a 200-watt, internally matched LDMOS FET, designed for CDMA/WCDMA and multicarrier GSM base station applications with frequencies from 700 to 1000 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITBH09200B2
*Typical Sing.

ITBH09200B2 Datasheet (974.16 KB)

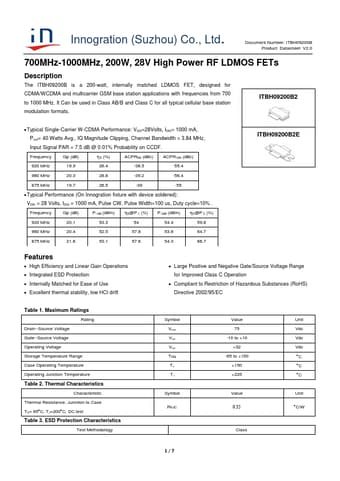

Preview of ITBH09200B2 PDF

Datasheet Details

Part number:

ITBH09200B2

Manufacturer:

Innogration

File Size:

974.16 KB

Description:

High power rf ldmos fet.
