ITBH09150B2E, ITBH09150B2 Datasheet - Innogration

ITBH09150B2E, ITBH09150B2, High Power RF LDMOS FET

Innogration (Suzhou) Co., Ltd.Document Number: ITBH09150B Product Datasheet V2.0 700MHz-1000MHz, 150W, 28V High Power RF LDMOS FETs .
The ITBH09150B is a 150-watt, internally matched LDMOS FET, designed for CDMA/WCDMA and multicarrier GSM base station applications with frequencies fr.

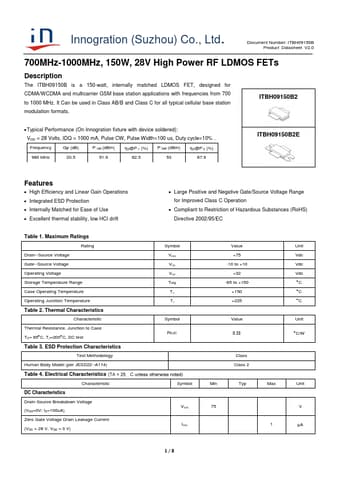

datasheet Preview Page 1 from Datasheet4u.com

ITBH09150B2-Innogration.pdf

ITBH09150B2E Datasheet Preview — This datasheet PDF includes multiple part numbers: ITBH09150B2E, ITBH09150B2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ITBH09150B2E, ITBH09150B2

Manufacturer:

Innogration

File Size:

1.02 MB

Description:

High Power RF LDMOS FET

Note:

This datasheet PDF includes multiple part numbers: ITBH09150B2E, ITBH09150B2.
Please refer to the document for exact specifications by model.

Features

* High Efficiency and Linear Gain Operations
* Integrated ESD Protection
* Internally Matched for Ease of Use
* Excellent thermal stability, low HCI drift Table 1. Maximum Ratings Rating Drain
* Source Voltage Gate
* Source Voltage Operating Voltage Storage Temperature Ra

Applications

* with frequencies from 700 to 1000 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITBH09150B2
* Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 1000 mA, Pulse CW, Pulse Width=100 us, Duty cycle=10%
