ITBH09150B2

High Power RF LDMOS FET

Innogration

ITBH09150B2 Features

* High Efficiency and Linear Gain Operations

* Integrated ESD Protection

* Internally Matched for Ease of Use

* Excellent thermal stability, low HCI drift Table 1. Maximum Ratings Rating Drain

* Source Voltage Gate

* Source Voltage Operating Voltage Storage Temperature Ra

ITBH09150B2 General Description

The ITBH09150B is a 150-watt, internally matched LDMOS FET, designed for CDMA/WCDMA and multicarrier GSM base station applications with frequencies from 700 to 1000 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITBH09150B2
*Typical Perf.

ITBH09150B2 Datasheet (1.02 MB)

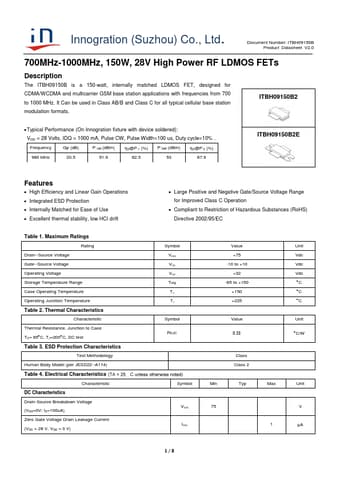

ITBH09150B2 Datasheet Preview — Preview of ITBH09150B2 PDF

Datasheet Details

Part number:

ITBH09150B2

Manufacturer:

Innogration

File Size:

1.02 MB

Description:

High power rf ldmos fet.
