ITCH16180B2 - High Power RF LDMOS FET

Datasheet Summary

Description

The ITCH16180B2 is a 180-watt, internally matched LDMOS FET, designed for multicarrier WCDMA/PCS/DCS/LTE base station and ISM applications with frequencies from 1300 to 1700 MHz.

It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats.

Typ

Features

  • High Efficiency and Linear Gain Operations.
  • Integrated ESD Protection.
  • Internally Matched for Ease of Use.
  • Excellent thermal stability, low HCI drift Table 1. Maximum Ratings Rating Drain--Source Voltage Gate--Source Voltage Operating Voltage Storage Temperature Range Case Operating Temperature.
  • Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
  • Pb-free, RoHS-compliant Symbol Value Unit VDSS 70 Vdc VGS -10 to +10 Vdc VD.

📥 Download Datasheet

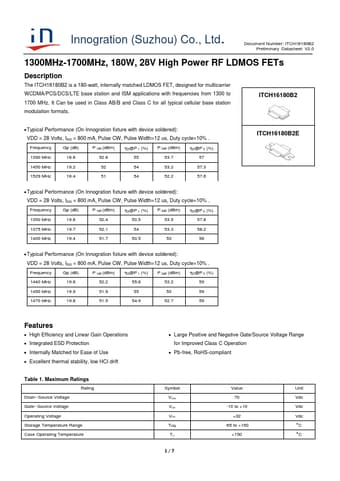

Datasheet preview – ITCH16180B2

Datasheet Details

Part number ITCH16180B2
Manufacturer Innogration
File Size 1.01 MB
Description High Power RF LDMOS FET
Datasheet download datasheet ITCH16180B2 Datasheet
Additional preview pages of the ITCH16180B2 datasheet.

📁 Similar Datasheet

  • ITC008 - Technical Traing Manual (Thomson)
  • ITC008 - Main Board (Thomson)
  • ITC008 - Deflection (Thomson)
  • ITC1000 - Pulsed Avionics (GHz Technology)
  • ITC1100 - Common base bipolar transistor (GHz Technology)
  • ITC117 - Integrated Telecom Circuits (Clare Inc.)
  • ITC117P - Integrated Telecom Circuits (Clare Inc.)
  • ITC117P - Integrated Telecom Circuits (IXYS)
  • ITC117PL - Integrated Telecom Circuits (IXYS)
  • ITC135P - Integrated Telecom Circuits (Clare Inc.)
Other Datasheets by Innogration

Full PDF Text Transcription

Click to expand full text
Innogration (Suzhou) Co., Ltd. Document Number: ITCH16180B2 Preliminary Datasheet V2.0 1300MHz-1700MHz, 180W, 28V High Power RF LDMOS FETs Description The ITCH16180B2 is a 180-watt, internally matched LDMOS FET, designed for multicarrier WCDMA/PCS/DCS/LTE base station and ISM applications with frequencies from 1300 to 1700 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITCH16180B2 Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 800 mA, Pulse CW, Pulse Width=12 us, Duty cycle=10% . Frequency Gp (dB) P-1dB (dBm) D@P-1 (%) P-3dB (dBm) D@P-3 (%) 1390 MHz 18.8 52.8 55 53.7 57 1450 MHz 19.2 52 54 53.2 57.3 1529 MHz 18.4 51 54 52.2 57.
