ICS2510C

3.3V Phase-Lock Loop Clock Driver

ICS2510C Features

* Meets or exceeds PC133 registered DIMM specification1.1 Spread Spectrum Clock Compatible Distributes one clock input to one bank of ten outputs Operating frequency 25MHz to 175MHz External feedback input (FBIN) terminal

ICS2510C General Description

The ICS2510C is a high performance, low skew, low jitter clock driver. It uses a phase lock loop (PLL) technology to align, in both phase and frequency, the CLKIN signal with the CLKOUT signal. It is specifically designed for use with synchronous SDRAMs. The ICS2510C operates at 3.3V VCC and drives .

ICS2510C Datasheet (77.30 KB)

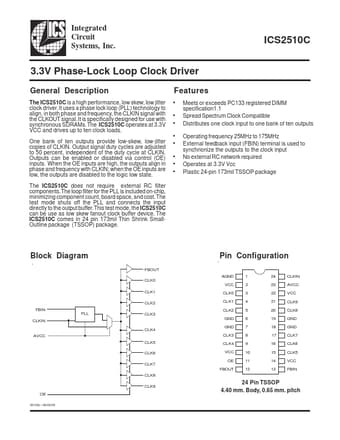

Preview of ICS2510C PDF

Datasheet Details

Part number:

ICS2510C

Manufacturer:

Integrated Circuit Systems

File Size:

77.30 KB

Description:

3.3v phase-lock loop clock driver.
