ICS2595 Datasheet - Integrated Circuit Systems

ICS2595 User-Programmable Dual High-Performance Clock Generator

The ICS2595 is a dual-PLL (phase-locked loop) clock generator specifically designed for high-resolution, highrefresh rate, video applications. The video PLL generates any of 16 pre-programmed frequencies through selection of the address lines FS0-FS3. Similarly, the auxiliary PLL can generate any on.

ICS2595 Features

* Advanced ICS monolithic phase-locked loop technology for extremely low jitter Supports high-resolution graphics - VCLK output to 145 MHz Completely integrated - requires only external crystal (or reference frequency and decoupling) Power-do

ICS2595_IntegratedCircuitSystems.pdf

Preview of ICS2595 PDF

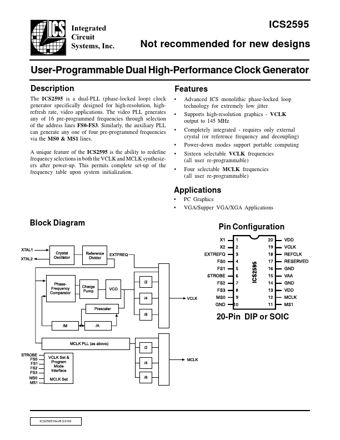

ICS2595 Datasheet Preview Page 2 ICS2595 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS2595

Manufacturer:

Integrated Circuit Systems

File Size:

272.37 KB

Description:

User-programmable dual high-performance clock generator.
