ICS2572

User-Programmable Dual High-Performance Clock Generator

ICS2572 Features

* Advanced ICS monolithic phase-locked loop technology Supports high-resolution graphics - differential CLK output to 185 MHz Divided dotclock output (LOAD) available Simplified device programming Sixteen selectable VCLK frequencies

ICS2572 General Description

The ICS2572 is a dual-PLL (phase-locked loop) clock generator with differential video outputs specifically designed for high-resolution, high-refresh rate, video applications. The video PLL generates any of 16 pre-programmed frequencies through selection of the address lines FS0-FS3. Similarly, the .

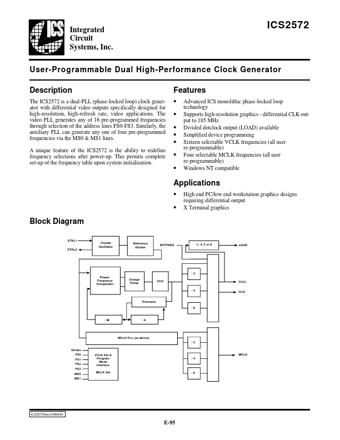

ICS2572 Datasheet (144.57 KB)

Preview of ICS2572 PDF

Datasheet Details

Part number:

ICS2572

Manufacturer:

Integrated Circuit Systems

File Size:

144.57 KB

Description:

User-programmable dual high-performance clock generator.
