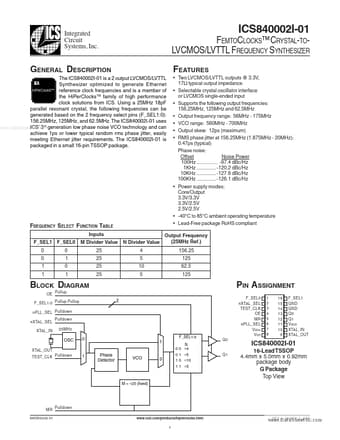

Preview of ICS840002I-01 PDF
ICS840002I-01 Datasheet Preview Page 2 ICS840002I-01 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS840002I-01

Manufacturer:

Integrated Circuit Systems

File Size:

245.88 KB

Description:

Crystal-to lvcmos/lvttl frequency synthesizer.

ICS840002I-01, CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

The ICS840002I-01 is a 2 output LVCMOS/LVTTL Synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be ge

ICS840002I-01 Features

* Two LVCMOS/LVTTL outputs @ 3.3V, 17Ω typical output impedance

* Selectable crystal oscillator interface or LVCMOS single-ended input

* Supports the following output frequencies: 156.25MHz, 125MHz and 62.5MHz

* Output frequency range: 56MHz - 175MHz

* VCO ran
