ICS9DB202 - Two 0.7V current mode differential HCSL output pairs

ICS9DB202 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS9DB202 PCI EXPRESS™ JITTER ATTENUATOR .
The ICS9DB202 is a high perfromance 1-to-2 Differential-to-HCSL Jitter Attenuator designed for use HiPerClockS™ in PCI Express™ systems.

ICS9DB202 Features

* Two 0.7V current mode differential HCSL output pairs
* 1 differential clock input
* CLK and nCLK supports the following input types: LVPECL, LVDS, LVHSTL, SSTL, HCSL
* Maximum output frequency: 140MHz
* Output skew: 110ps (maximum)
* Cycle-to-cycle j

ICS9DB202 Applications

* the maximum input voltage for CLK, nCLK is VDD + 0.3V. 9DB202CG www. icst. com/products/hiperclocks. html 3 REV. A OCTOBER 6, 2004 DataSheet 4 U . com www. DataSheet4U. com Integrated Circuit Systems, Inc. ICS9DB202 PCI EXPRESS™ JITTER ATTENUATOR Test Conditions Minimum 12 680 65 -10 250 10 550 Ty

📥 Download Datasheet

Preview of ICS9DB202 PDF

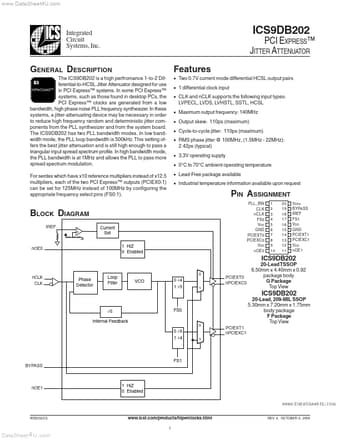

datasheet Preview Page 2 datasheet Preview Page 3
