ICS9DB423

4-OUTPUT DIFFERENTIAL BUFFER

ICS9DB423 Features

* Benefits

* Spread spectrum modulation tolerant, 0 to -0.5% down spread and +/- 0.25% center spread

* Supports undriven differential outputs in Power Down and DIF_STOP# for modes for power management. Output Features

* 4 - 0.7V current-mode differential output pairs

ICS9DB423 General Description

The ICS9DB423B is compatible with the Intel DB400Q Differential Buffer Specification. This buffer provides 4 PCI-Express SRC or 4 QPI clocks. The ICS9DB423B is driven by a differential output pair from a CK410B+ or CK509B main clock generator. Recommended Application DB400Q compatible part with PCIe.

ICS9DB423 Datasheet (479.53 KB)

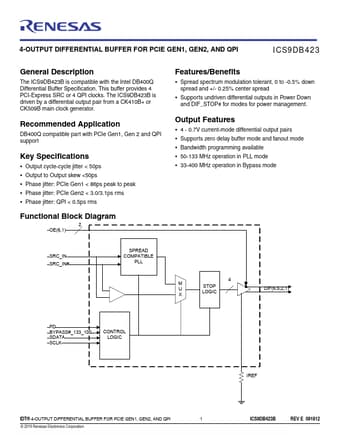

Preview of ICS9DB423 PDF

Datasheet Details

Part number:

ICS9DB423

Manufacturer:

Renesas ↗

File Size:

479.53 KB

Description:

4-output differential buffer.
