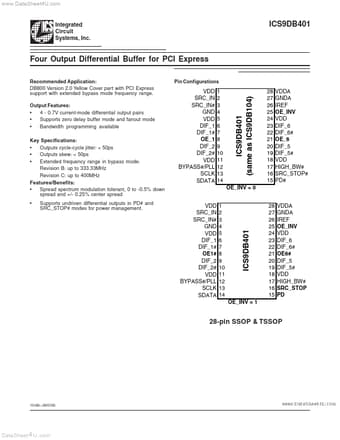

ICS9DB401 Datasheet - Integrated Circuit Systems

ICS9DB401 - Four Output Differential Buffer

Power supply, nominal 3.3V 0.7 V Differential SRC TRUE input 0.7 V Differential SRC COMPLEMENTARY input Ground pin. Power supply, nominal 3.3V 0.7V differential true clock output 0.7V differential complement clock output Active high input for enabling output 1. 0 = tri-state outputs, 1= enable outpu.

ICS9DB401 Features

* 4 - 0.7V current-mode differential output pairs

* Supports zero delay buffer mode and fanout mode

* Bandwidth programming available Key Specifications:

* Outputs cycle-cycle jitter: < 50ps

* Outputs skew: < 50ps

* Extended frequency range in bypass
