ICS873991-147 - LOW VOLTAGE LVCMOS/LVPECL-TO LVPECL/ECL CLOCK GENERATOR

Product Overview

Integrated Device Technology

Datasheet Details

Part number	ICS873991-147
Manufacturer	Integrated Device Technology
File Size	337.98 KB
Description	LOW VOLTAGE LVCMOS/LVPECL-TO LVPECL/ECL CLOCK GENERATOR
Datasheet	ICS873991-147 Datasheet

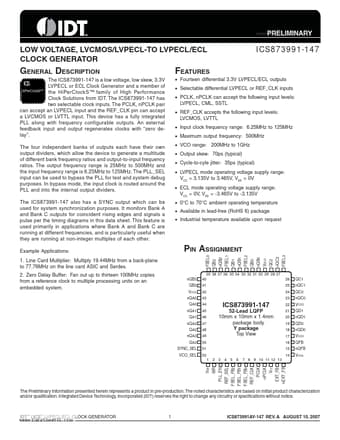

Additional preview pages of the ICS873991-147 datasheet.

Product details

Description

The ICS873991-147 is a low voltage, low skew, 3.3V IC S LVPECL or ECL Clock Generator and a member of HiPerClockS™ the HiPerClockS™ family of High Performance Clock Solutions from IDT.

Features

Fourteen differential 3.3V LVPECL/ECL outputs.
Selectable differential LVPECL or REF_CLK inputs.
PCLK, nPCLK can accept the following input levels: LVPECL, CML, SSTL.
REF_CLK accepts the following input levels: LVCMOS, LVTTL.
Input clock frequency range: 6.25MHz to 125MHz.
Maximum output frequency: 500MHz.
VCO range: 200MHz to 1GHz.
Output skew: 70ps (typical).
Cycle-to-cyle jitter: 35ps (typical).
LVPECL.
