IDTQS316233 - QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 32:16 MUX/DEMUX

Product Overview

Integrated Device

Datasheet Details

Part number	IDTQS316233
Manufacturer	Integrated Device
File Size	44.85 KB
Description	QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 32:16 MUX/DEMUX
Datasheet	IDTQS316233 Datasheet
Additional preview pages of the IDTQS316233 datasheet.

Product details

Description

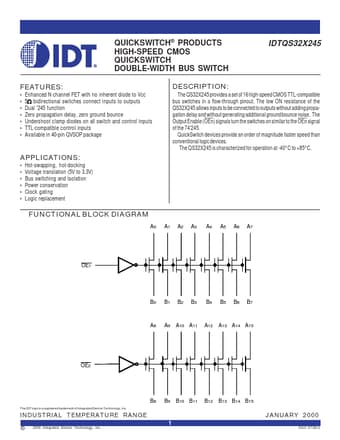

Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Dual '245 function Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs TTL-compatible control inputs Available in 40-pin QVSOP package The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout.The low ON resistance of the QS32X245 allows inputs to be connected to outputs without adding propagation

Features

IDTQS32X245.
