Datasheet Details
- Part number
- AUIRGP35B60PD
- Manufacturer
- International Rectifier
- File Size
- 285.48 KB
- Datasheet
- AUIRGP35B60PD-InternationalRectifier.pdf
- Description
- IGBT
AUIRGP35B60PD Description

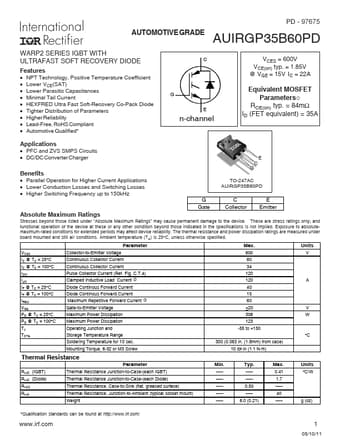

PD - 97675 AUTOMOTIVEGRADE AUIRGP35B60PD WARP2 SERIES IGBT WITH ULTRAFAST SOFT RECOVERY DIODE .
AUIRGP35B60PD Features
* NPT Technology, Positive Temperature Coefficient
* Lower VCE(SAT)
* Lower Parasitic Capacitances
* Minimal Tail Current
* HEXFRED Ultra Fast Soft-Recovery Co-Pack Diode
* Tighter Distribution of Parameters
* Higher Reliability
* Lead-
AUIRGP35B60PD Applications
* PFC and ZVS SMPS Circuits
* DC/DC Converter Charger
Benefits
* Parallel Operation for Higher Current Applications
* Lower Conduction Losses and Switching Losses
* Higher Switching Frequency up to 150kHz
G Gate
E C G
TO-247AC AUIRGP35B60PD
C Collector
E
