Datasheet Details
- Part number
- AUIRGP35B60PD-E
- Manufacturer
- International Rectifier
- File Size
- 325.02 KB
- Datasheet
- AUIRGP35B60PD-E-InternationalRectifier.pdf
- Description
- IGBT

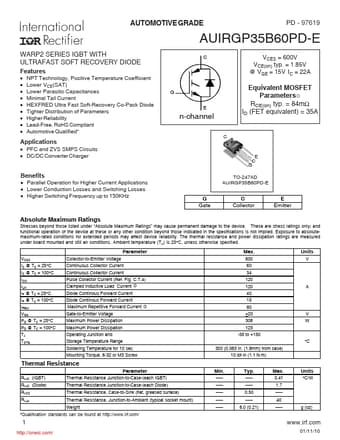

AUIRGP35B60PD-E Description
AUTOMOTIVE GRADE PD - 97619 AUIRGP35B60PD-E WARP2 SERIES IGBT WITH ULTRAFAST SOFT RECOVERY DIODE .
AUIRGP35B60PD-E Features
* NPT Technology, Positive Temperature Coefficient
* Lower VCE(SAT)
* Lower Parasitic Capacitances
* Minimal Tail Current
* HEXFRED Ultra Fast Soft-Recovery Co-Pack Diode
* Tighter Distribution of Parameters
* Higher Reliability
* Lead-
AUIRGP35B60PD-E Applications
* PFC and ZVS SMPS Circuits
* DC/DC Converter Charger
Benefits
* Parallel Operation for Higher Current Applications
* Lower Conduction Losses and Switching Losses
* Higher Switching Frequency up to 150KHz
C
G E
n-channel
VCES = 600V VCE(on) typ. = 1.85V @ VG
