IRF3000 SMPS MOSFET

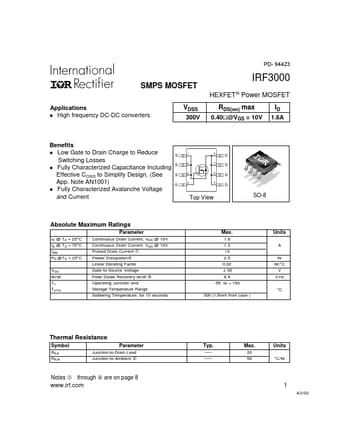

PD- 94423 SMPS MOSFET Applications High frequency DC-DC converters IRF3000 HEXFET® Power MOSFET RDS(on) max 0.40W@VGS = 10V VDSS 300V ID 1.6A l Benefits l Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current S S S G 1 8 A A D D D D 2 7 3 6 4 5 Top View SO-8 Absolute Maximum Ratings Parameter ID @ TA = 25°C ID @ TA = 70°C IDM P.

IRF3000 Features

* specifications subject to change without notice. This product has been designed and qualified for the Industrial market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit
