IRF3007L - N-Channel MOSFET

Datasheet Summary

Features

  • With To-262 package.
  • Low input capacitance and gate charge.
  • Low gate input resistance.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – IRF3007L

Datasheet Details

Part number IRF3007L
Manufacturer INCHANGE
File Size 251.67 KB
Description N-Channel MOSFET
Datasheet download datasheet IRF3007L Datasheet

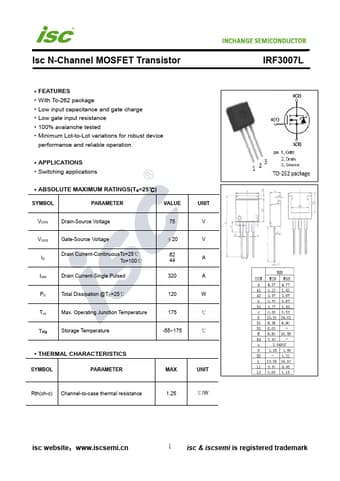

Additional preview pages of the IRF3007L datasheet.

📁 Similar Datasheet

  • IRF3007L - AUTOMOTIVE MOSFET (International Rectifier)
  • IRF3007LPBF - HEXFET Power MOSFET (International Rectifier)
  • IRF3007 - AUTOMOTIVE MOSFET (International Rectifier)
  • IRF3007PbF - HEXFET Power MOSFET (International Rectifier)
  • IRF3007S - AUTOMOTIVE MOSFET (International Rectifier)
  • IRF3007SPBF - HEXFET Power MOSFET (International Rectifier)
  • IRF3000 - SMPS MOSFET (International Rectifier)
  • IRF3000PBF - HEXFET Power MOSFET (International Rectifier)
  • IRF300P226 - MOSFET (Infineon)
  • IRF305 - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Isc N-Channel MOSFET Transistor ·FEATURES ·With To-262 package ·Low input capacitance and gate charge ·Low gate input resistance ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 75 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 62 44 320 PD Total Dissipation @TC=25℃ 120 Tch Max. Operating Junction Temperature 175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth(ch-c) Channel-to-case thermal resistance 1.25 ℃/W IRF3007L isc website：www.iscsemi.
