IRF3007S - N-Channel MOSFET

Datasheet Summary

Features

  • With To-263(D2PAK) package.
  • Low input capacitance and gate charge.
  • Low gate input resistance.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

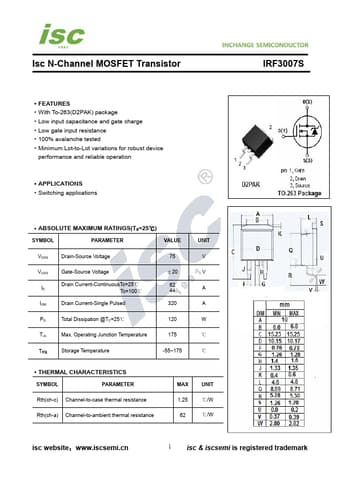

Datasheet preview – IRF3007S

Datasheet Details

Part number IRF3007S
Manufacturer INCHANGE
File Size 253.83 KB
Description N-Channel MOSFET
Datasheet download datasheet IRF3007S Datasheet
Additional preview pages of the IRF3007S datasheet.
