IRF3007 - AUTOMOTIVE MOSFET

Datasheet Summary

Description

Specifically designed for Automotive applications, this design of HEXFET® Power MOSFETs utilizes the lastest processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • VDSS = 75V G S RDS(on) = 0.0126Ω ID = 75A.

📥 Download Datasheet

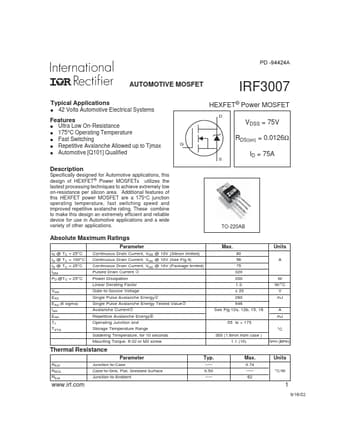

Datasheet preview – IRF3007

📁 Similar Datasheet

  • IRF3007 - N-Channel MOSFET (INCHANGE)
  • IRF3007L - N-Channel MOSFET (INCHANGE)
  • IRF3007S - N-Channel MOSFET (INCHANGE)
  • IRF300P226 - MOSFET (Infineon)
  • IRF305 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF320 - N-Channel Power MOSFET (Samsung semiconductor)
  • IRF320 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF320 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF320 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF320 - N-Channel Power MOSFETs (Harris)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD -94424A AUTOMOTIVE MOSFET Typical Applications ● IRF3007 HEXFET® Power MOSFET D 42 Volts Automotive Electrical Systems Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Automotive [Q101] Qualified Features ● ● ● ● ● VDSS = 75V G S RDS(on) = 0.0126Ω ID = 75A Description Specifically designed for Automotive applications, this design of HEXFET® Power MOSFETs utilizes the lastest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this HEXFET power MOSFET are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating.
