IRF5305, Power MOSFET

PD - 91385B IRF5305 HEXFET® Power MOSFET l l l l l l Advanced Process Technology Dynamic dv/dt Rating 175°C Operating Temperature Fast Switching P-C.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

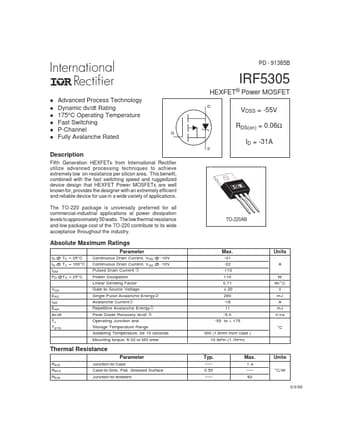

datasheet Preview Page 1 from Datasheet4u.com

IRF5305_InternationalRectifier.pdf

IRF5305 Datasheet Preview — Preview of IRF5305 PDF

Datasheet Details

Part number:

IRF5305

Manufacturer:

International Rectifier

File Size:

124.33 KB

Description:

Power MOSFET

Features

* 3.47 (.53 0) 4.06 (.16 0) 3.55 (.14 0) 3X 3X 1 .4 0 (.0 55 ) 1 .1 5 (.0 45 ) 0.93 (.03 7) 0.69 (.02 7) M B A M 3X 0.55 (.02 2) 0.46 (.01 8) 0 .3 6 (.01 4) 2.54 (.10 0) 2X N O TE S : 1 D IM E N S IO N IN G & TO L E R A N C ING P E R A N S I Y 1 4.5M , 1 9 82. 2 C O N TR O L LIN G D IM E N S IO

Applications

* The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. TO-220AB Absolute Maximum Ratings
