IRF5801 Datasheet - International Rectifier

IRF5801 Power MOSFET

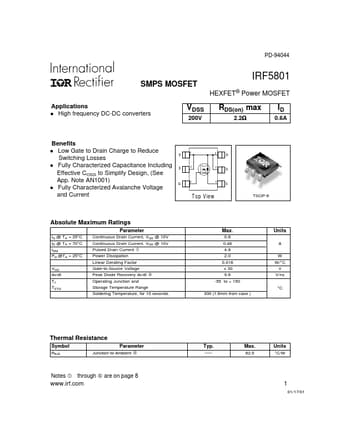

PD-94044 SMPS MOSFET Applications l High frequency DC-DC converters IRF5801 HEXFET® Power MOSFET VDSS 200V RDS(on) max 2.2Ω ID 0.6A Benefits Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current l D 1 6 A D D 2 5 D G 3 4 S T op V iew TSOP-6 Absolute Maximum Ratings Parameter ID @ TA = 25°C ID @ TA = 70°C IDM PD @TA = 25°C VGS.

IRF5801 Datasheet (120.63 KB)

Preview of IRF5801 PDF
IRF5801 Datasheet Preview Page 2 IRF5801 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF5801

Manufacturer:

International Rectifier

File Size:

120.63 KB

Description:

Power mosfet.
