Part number:
IRF5802PbF
Manufacturer:
International Rectifier
File Size:
137.10 KB
Description:
Power mosfet.
IRF5802PbF-InternationalRectifier.pdf
Datasheet Details
Part number:
IRF5802PbF
Manufacturer:
International Rectifier
File Size:
137.10 KB
Description:
Power mosfet.

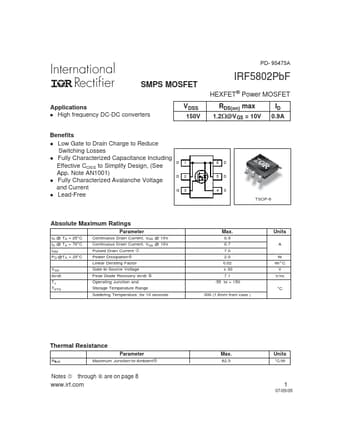

IRF5802PbF, Power MOSFET
PD- 95475A SMPS MOSFET Applications l High frequency DC-DC converters Benefits l Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App.
Note AN1001) l Fully Characterized Avalanche Voltage and Current l Lead-Free IRF5802PbF HEXFET® Power MOSFET RDS(on) max 1.2W@VGS = 10V ID 0.9A VDSS 150V D 1 6 D D 2 5 D G 3 4 S TSOP-6 Absolute Maximum Ratings Parameter ID @ TA = 25°C ID @ TA = 70°C IDM PD @TA
