IRF8910PBF Datasheet - International Rectifier

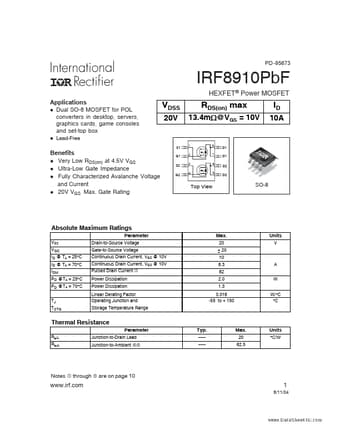

IRF8910PBF HEXFET Power MOSFET

PD -95673 IRF8910PbF HEXFET® Power MOSFET Applications l Dual SO-8 MOSFET for POL converters in desktop, servers, graphics cards, game consoles and set-top box l VDSS 20V 13.4m:@VGS = 10V 1 2 3 4 RDS(on) max ID 10A Lead-Free S1 G1 S2 G2 8 7 6 5 Benefits l Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current l 20V VGS Max. Gate Rating D1 D1 D2 D2 Top View SO-8 Absolute Maximum Ratings Parameter VDS VGS ID @ TA = 25°C ID @ TA = 70°C.

IRF8910PBF Features

* e MOSFET must still be turned on and off by the control IC so the gate drive losses become much more significant. Secondly, the output charge Qoss and reverse recovery charge Qrr both generate losses that are transfered to Q1 and increase the dissipation in that device. Thirdly, gate charge will imp

IRF8910PBF Datasheet (252.11 KB)
