IRFP4137PBF Power MOSFET

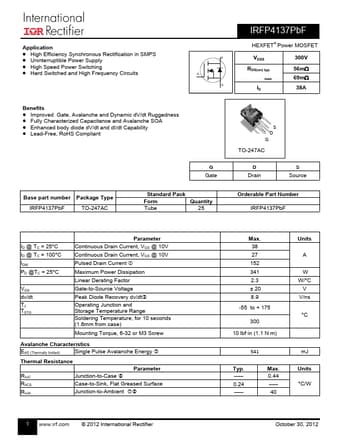

Application  High Efficiency Synchronous Rectification in SMPS  Uninterruptible Power Supply High Speed Power Switching  Hard Switched and High Frequency Circuits G D S IRFP4137PbF HEXFET® Power MOSFET VDSS RDS(on) typ. max ID 300V 56m 69m 38A Benefits  Improved Gate, Avalanche and Dynamic dV/dt Ruggedness  Fully Characterized Capacitance and Avalanche SOA  Enhanced body diode dV/dt and dI/dt Capability  Lead-Free, RoHS Compliant G Ga.

IRFP4137PBF Features

* s(th) Qgs1 Qgs2 Qgd Qgodr Fig 21b. Gate Charge Waveform October 30, 2012 TO-247AC Package Outline Dimensions are shown in millimeters (inches) E2/2 Q E2 2X E A D L1 SEE VIEW"B" L 2x b2 b4 3x b Ø.010 B A e 2x LEADTIP A "A" A2 B "A" c A1 Ø.010 ØP BA -A- S THERMAL PAD D1 E1 Ø.010
