IRG4PC40UPBF - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

  • UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode.
  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
  • Industry standard TO-247AC package.
  • Lead-Free C UltraFast Speed IGBT VCES = 600V G E VCE(on) typ. = 1.72V @VGE = 15V, IC = 20A n-channel Benefits.
  • Generation 4 IGBT's offer highest efficiency available.
  • IGBT's optimized for spe.

📥 Download Datasheet

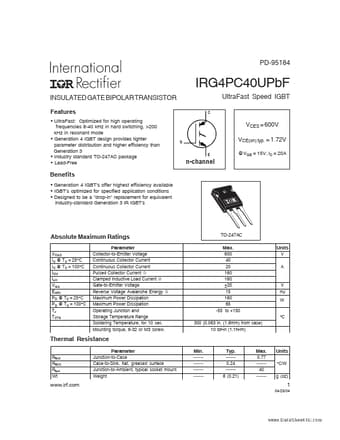

Datasheet preview – IRG4PC40UPBF
