IRG4PC50UPBF - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

  • UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode.
  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
  • Industry standard TO-247AC package.
  • Lead-Free C G E n-channel Benefits.
  • Generation 4 IGBT's offer highest efficiency available.
  • IGBT's optimized for specified.

📥 Download Datasheet

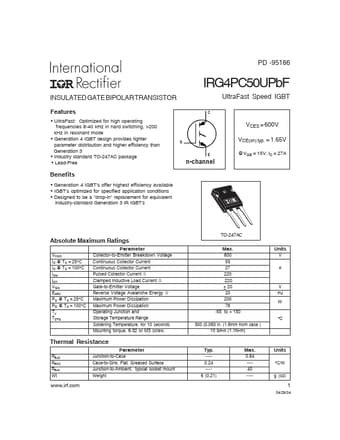

Datasheet preview – IRG4PC50UPBF
