IRG4RC10K - INSULATED GATE BIPOLAR TRANSISTO

Product Overview

International Rectifier

📥 Download Datasheet

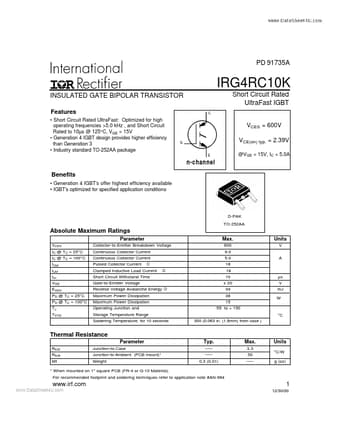

IRG4RC10K INSULATED GATE BIPOLAR TRANSISTO by International Rectifier - Datasheet Preview — Datasheet preview – IRG4RC10K

Datasheet Details

Part number	IRG4RC10K
Manufacturer	International Rectifier
File Size	170.70 KB
Description	INSULATED GATE BIPOLAR TRANSISTO
Datasheet	IRG4RC10K Datasheet
Additional preview pages of the IRG4RC10K datasheet.

Product details

Features

Short Circuit Rated UltraFast: Optimized for high operating frequencies >5.0 kHz , and Short Circuit Rated to 10µs @ 125°C, VGE = 15V.
Generation 4 IGBT design provides higher efficiency than Generation 3.
Industry standard TO-252AA package C Short Circuit Rated UltraFast IGBT VCES = 600V G E VCE(on) typ. = 2.39V @VGE = 15V, IC = 5.0A n-channel Benefits.
Generation 4 IGBT's offer highest efficiency available.
IGBT's optimized for specified applic.
