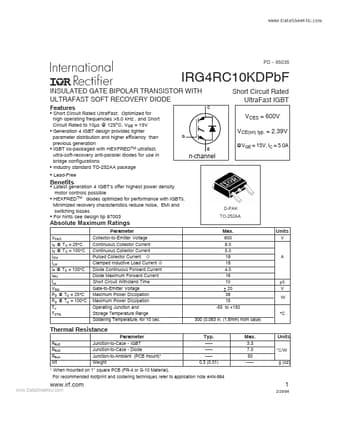

PD - 95035 IRG4RC10KDPbF INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE Short Circuit Rated UltraFast: Optimized for high operating frequencies >5.0 kHz , and Short Circuit Rated to 10µs @ 125°C, VGE = 15V Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than previous generation IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations In.

IRG4RC10KDPBF Features

* VCES = 600V G E VCE(on) typ. = 2.39V @VGE = 15V, IC = 5.0A n-channel Benefits Absolute Maximum Ratings VCES IC @ TC = 25°C IC @ TC = 100°C ICM ILM IF @ TC = 100°C IFM tsc VGE PD @ TC = 25°C PD @ TC = 100°C TJ TSTG

* Latest generation 4 IGBT's offer highest power density motor controls
