IRG4RC10U - INSULATED GATE BIPOLAR TRANSISTOR

Product Overview

International Rectifier

📥 Download Datasheet

IRG4RC10U INSULATED GATE BIPOLAR TRANSISTOR by International Rectifier - Datasheet Preview — Datasheet preview – IRG4RC10U

Datasheet Details

Part number	IRG4RC10U
Manufacturer	International Rectifier
File Size	167.67 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG4RC10U Datasheet

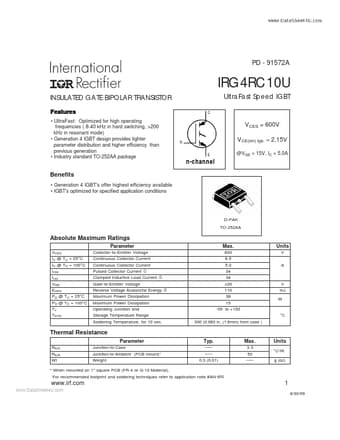

Additional preview pages of the IRG4RC10U datasheet.

Product details

Features

UltraFast: Optimized for high operating frequencies ( 8-40 kHz in hard switching, >200 kHz in resonant mode).
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than previous generation.
Industry standard TO-252AA package C UltraFast Speed IGBT VCES = 600V G E VCE(on) typ. = 2.15V @VGE = 15V, IC = 5.0A n-channel Benefits.
Generation 4 IGBT's offer highest efficiency available.
IGBT's optimized for specified ap.
