IRG7S313U Datasheet - International Rectifier

IRG7S313U PDP TRENCH IGBT

IRG7S313U Features

* Key Parameters l Advanced Trench IGBT Technology VCE min 330 V l Optimized for Sustain and Energy Recovery VCE(ON) typ. @ IC = 20A 1.35 V circuits in PDP applications l Low VCE(on) and Energy per Pulse (EPULSETM) for improved panel efficiency IRP max @ TC= 25°C TJ max 160 A 150 °C l

IRG7S313U Datasheet (272.87 KB)

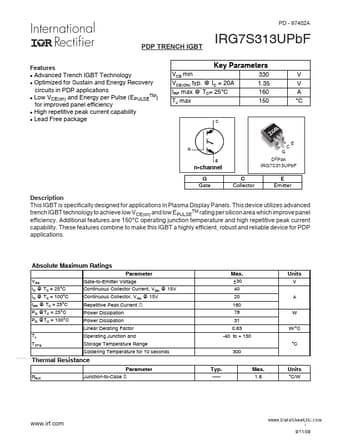

Preview of IRG7S313U PDF
IRG7S313U Datasheet Preview Page 2 IRG7S313U Datasheet Preview Page 3

Datasheet Details

Part number:

IRG7S313U

Manufacturer:

International Rectifier

File Size:

272.87 KB

Description:

Pdp trench igbt.
