IRG7S319UPBF, PDP TRENCH IGBT

PD - 97155 PDP TRENCH IGBT .
This IGBT is specifically designed for applications in Plasma Display Panels.

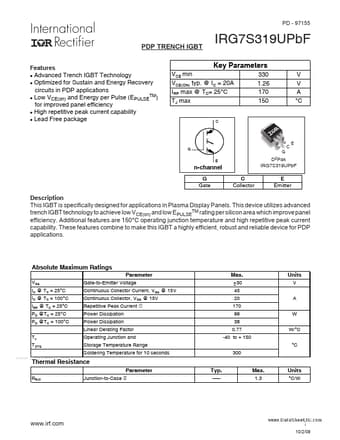

datasheet Preview Page 1 from Datasheet4u.com

IRG7S319UPBF_InternationalRectifier.pdf

IRG7S319UPBF Datasheet Preview — Preview of IRG7S319UPBF PDF

Datasheet Details

Part number:

IRG7S319UPBF

Manufacturer:

International Rectifier

File Size:

272.77 KB

Description:

PDP TRENCH IGBT

Applications

* TM) l Low VCE(on) and Energy per Pulse (EPULSE for improved panel efficiency l High repetitive peak current capability l Lead Free package IRG7S319UPbF Key Parameters 330 1.26 170 150 V V A °C VCE min VCE(ON) typ. @ IC = 20A IRP max @ TC= 25°C TJ max C G E G C E n-channel G Gate C Collector
