IRGB14C40L - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

IRGB14C40L Datasheet Preview — Preview of IRGB14C40L PDF

Datasheet Details

Part number	IRGB14C40L
Manufacturer	International Rectifier ↗
File Size	159.63 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRGB14C40L_InternationalRectifier.pdf

IRGB14C40L Product details

Description

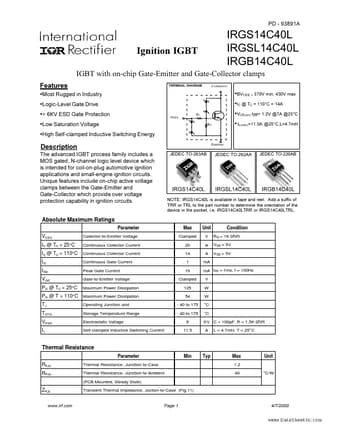

Emitter JEDEC TO-263AB JEDEC TO-262AA JEDEC TO-220AB IRGS14C40L IRGSL14C40L IRGB14C40L NOTE: IRGS14C40L is available in tape and reel.Add a suffix of TRR or TRL to the part number to determine the orientation of the device in the pocket, i.e, IRGS14C40LTRR or IRGS14C40LTRL.Condition RG = 1K ohm VGE = 5V VGE = 5V VCES IC @ TC = 25°C IC @ TC = 110°C IG IGp VGE PD @ TC = 25°C TJ TSTG VESD IL Collector-to-Emitter Voltage Continuous Collector Current Continuous Collector Current Continuo

Features

Most Rugged in Industry Logic-Level Gate Drive > 6KV ESD Gate Protection Low Saturation Voltage High Self-clamped Inductive Switching Energy The advanced IGBT process family includes a MOS gated, N-channel logic level device which is intended for coil-on-plug automotive ignition.
