IRS2005MPBF Datasheet, driver equivalent, International Rectifier

IRS2005MPBF Features

  • Driver
  • Gate drive supplies up to 20V per channel
  • Undervoltage lockout for VCC, VBS
  • 3.3 V, 5V , 15V input logic compatible
  • Tolerant to negative transient

PDF File Details

Part number:

IRS2005MPBF

Manufacturer:

International Rectifier

File Size:

1.93MB

Download:

📄 Datasheet

Description:

High and low side driver. Package Options The IRS2005 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side reference

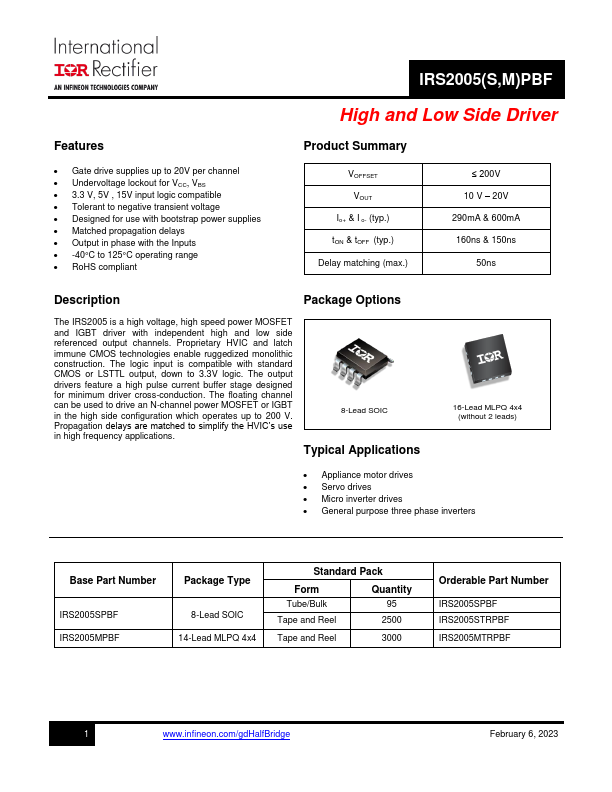

Datasheet Preview: IRS2005MPBF 📥 Download PDF (1.93MB)

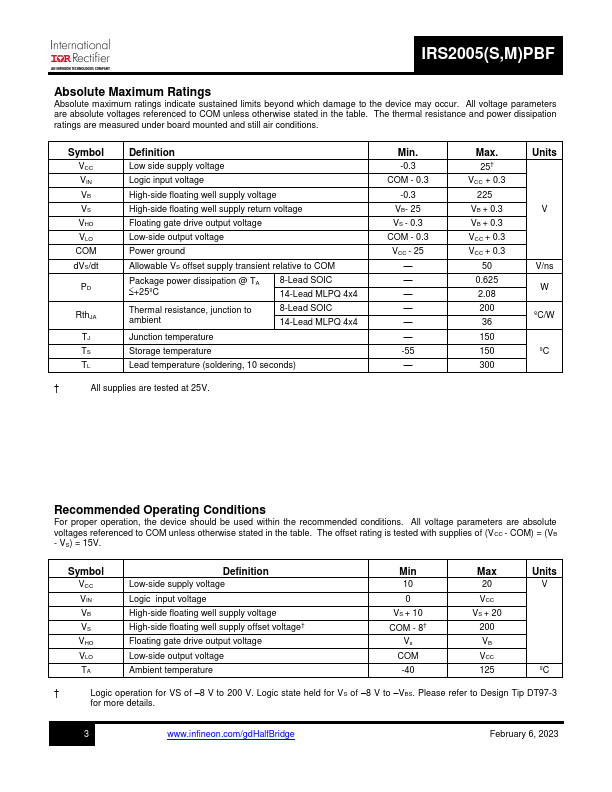

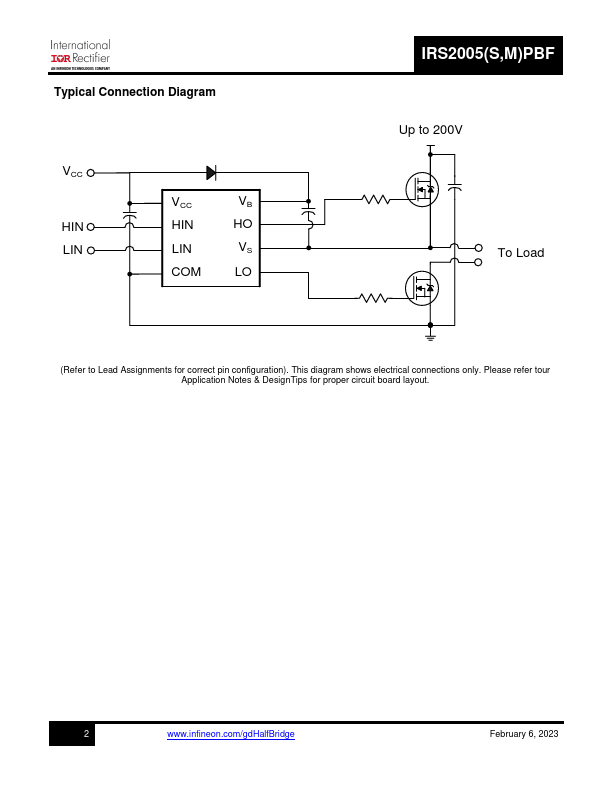

Page 2 of IRS2005MPBF Page 3 of IRS2005MPBF

IRS2005MPBF Application

  • Applications 8-Lead SOIC Typical Applications 16-Lead MLPQ 4x4 (without 2 leads)
  • Appliance motor drives
  • Servo drives
