IRS2005SPBF Datasheet, Driver, International Rectifier

IRS2005SPBF Features

• Driver
• Gate drive supplies up to 20V per channel
• Undervoltage lockout for VCC, VBS
• 3.3 V, 5V , 15V input logic compatible
• Tolerant to negative transient

PDF File Details

Part number:

IRS2005SPBF

Manufacturer:

International Rectifier

File Size:

1.93MB

Download:

📄 Datasheet

Description:

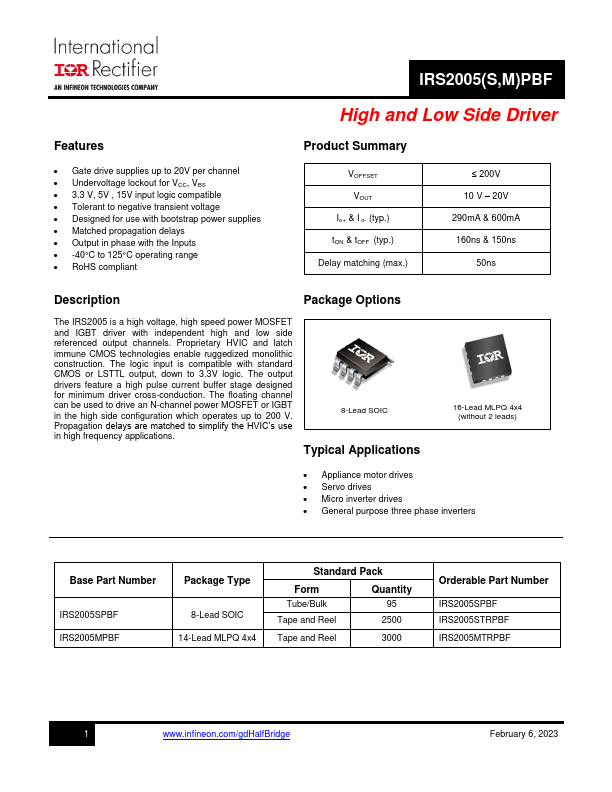

High and low side driver. Package Options The IRS2005 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side reference

IRS2005SPBF Application

• Applications 8-Lead SOIC Typical Applications 16-Lead MLPQ 4x4 (without 2 leads)
• Appliance motor drives
• Servo drives
