HGTP10N50C1 Datasheet, Igbt, Intersil Corporation

✔ HGTP10N50C1 Features

10A and 12A, 400V and 500V
VCE(ON): 2.5V Max.
TFI: 1µs, 0.5µs
Low On-State Voltage
Fast Switching Speeds
High Input Impedance
No Anti-Parallel Diode Applic

✔ HGTP10N50C1 Application

HGTP-TYPES JEDEC TO-220AB
Power Supplies
Motor Drives
Protection Circuits COLLECTOR (FLANGE) EMITTER

PDF File Details

Intersil Corporation manufacturer logo

Part number:

HGTP10N50C1

Manufacturer:

Intersil Corporation

File Size:

38.89kb

Download:

📄 Datasheet

Description:

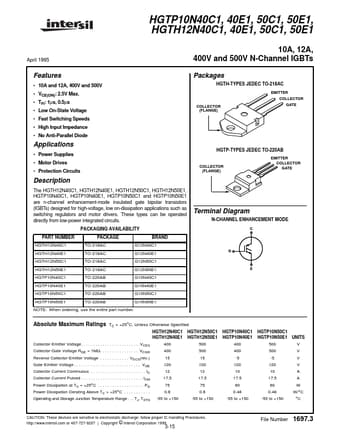

N-channel igbt. The HGTH12N40C1, HGTH12N40E1, HGTH12N50C1, HGTH12N50E1, HGTP10N40C1, HGTP10N40E1, HGTP10N50C1 and HGTP10N50E1 are n-channel enhanceme
