RF1S42N03LSM 42A/ 30V/ 0.025 Ohm/ Logic Level/ N-Channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

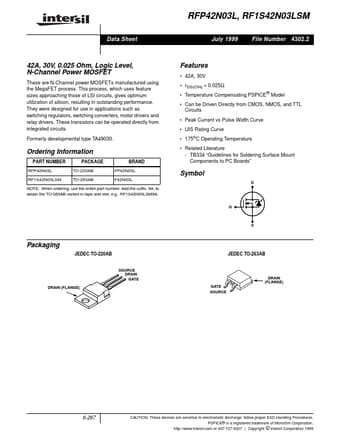

RFP42N03L, RF1S42N03LSM Data Sheet July 1999 File Number 4302.2 42A, 30V, 0.025 Ohm, Logic Level, N-Channel Power MOSFET These are N-Channel power MO.

📥 Download Datasheet

Preview of RF1S42N03LSM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RF1S42N03LSM
Manufacturer
Intersil Corporation
File Size
112.48 KB
Datasheet
RF1S42N03LSM_IntersilCorporation.pdf
Description
42A/ 30V/ 0.025 Ohm/ Logic Level/ N-Channel Power MOSFET

Features

* 42A, 30V
* rDS(ON) = 0.025Ω
* Temperature Compensating PSPICE® Model
* Can be Driven Directly from CMOS, NMOS, and TTL Circuits
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature
