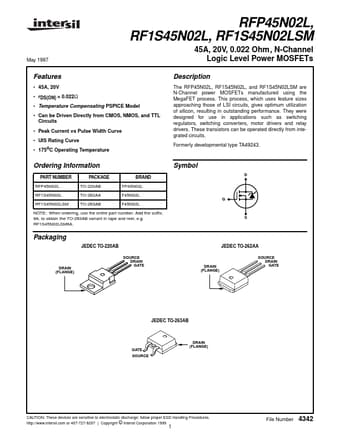

RF1S45N02LSM Datasheet, Mosfets, Intersil Corporation

RF1S45N02LSM Features

• Mosfets
• 45A, 20V
• rDS(ON) = 0.022Ω
• Temperature Compensating PSPICE Model
• Can be Driven Directly from CMOS, NMOS, and TTL Circuits
• Peak Current v

PDF File Details

Part number:

RF1S45N02LSM

Manufacturer:

Intersil Corporation

File Size:

78.87kb

Download:

📄 Datasheet

Description:

45a/ 20v/ 0.022 ohm/ n-channel logic level power mosfets. The RFP45N02L, RF1S45N02L, and RF1S45N02LSM are N-Channel power MOSFETs manufactured using the MegaFET process. This process, which u

RF1S45N02LSM Application

• Applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from in
